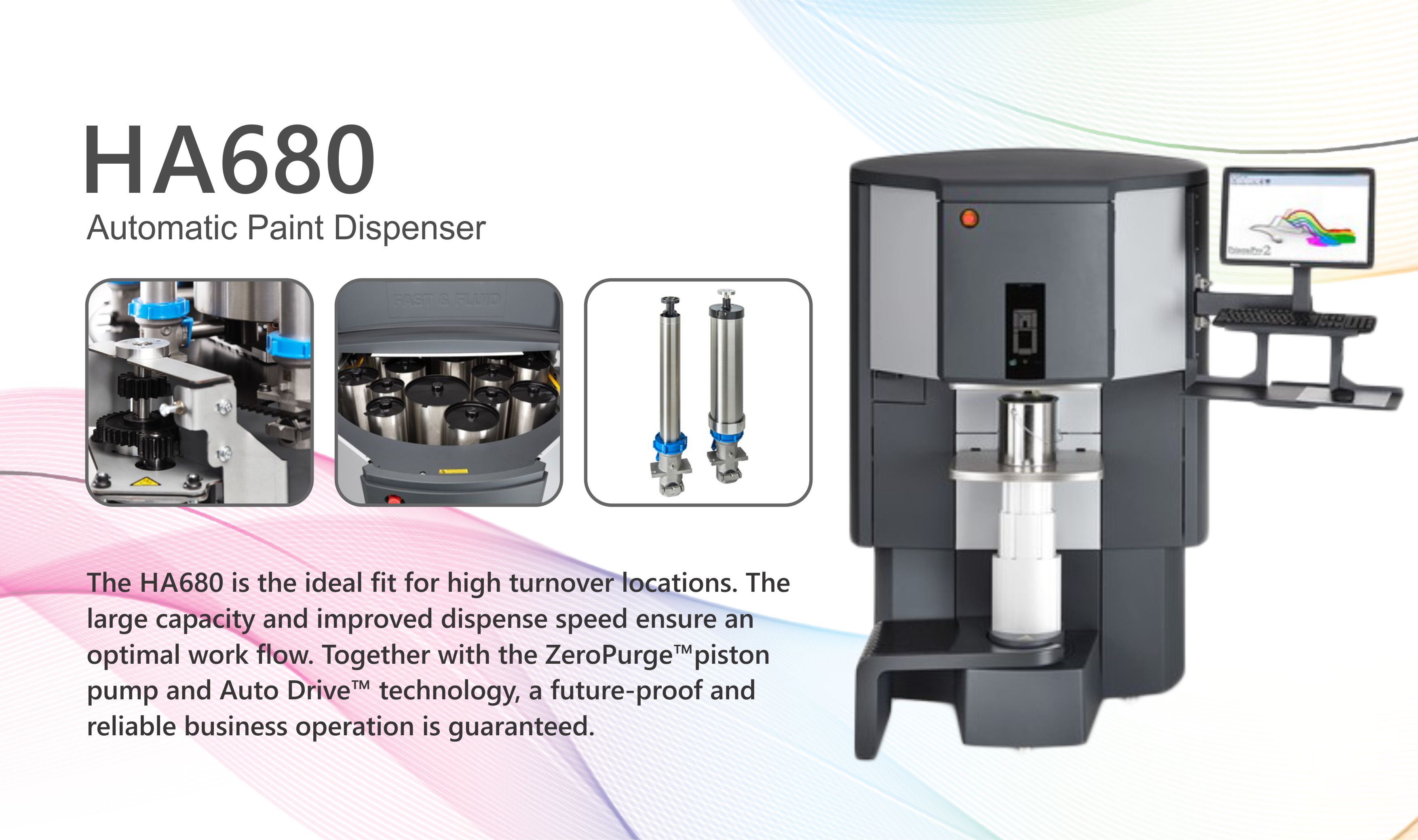

HA680

The HA680 is the ideal fit for high turnover locations. The large capacity and improved dispense speed ensure an optimal work flow. Together with the ZeroPurge™piston pump and Auto Drive™ technology, a future-proof and reliable business operation is guaranteed.

Specifications:

  • Sequential dispensing
  • ZeroPurge Piston pump technology
  • 16-36 POM/SST canisters in 3/6/10/20 l size
  • Universal, solvent and water based colorants
  • Pump sizes: 100 ml / 300 ml
  • Flow rate: 0.8 - 1.0 l/min (100 ml), 1.5 - 2.0 l/min (300 ml)
  • Smallest dispense: 0.05 ml (100 ml), 0.10 ml (300 ml)
  • Operator display
  • Electric can table
  • Brush monitor
  • Electric punch (optional)
  • Heating set (optional)
  • Low/high model
  • HWD 151x115x125 cm (low model)
    HWD 171x115x125 cm (high model)

Satellite
The Satellite is placed next to the dispenser to support all peripheral equipment ( PC, printer, etc)

Loading ramp
Handy wooden ramp you can fix to the pallet for easier loading or unloading of the dispenser

Can table adapter with rollers
Adapter to extend your roller conveyor onto the can table of the dispenser

Roller conveyor
Ergonomic solution for heavy cans. Position the roller conveyer in line with the can table to load or unload cans

Monitor Keyboard bracket (front)
Simple bracket holding a monitor and keyboard that is mounted onto the front of the dispenser

General

  • Automatic sequential
  • HA680
  • Solvent based, water based, universal

Canisters

  • Up to 16 - 36 canisters
  • Material: polymeric/stainless steel (optional)
  • Canister sizes 3/6/10/20 l

Pump

  • Harbil® ZeroPurge™ Piston pump
  • Pump sizes: 100 ml/300 ml
  • Flow rates: 0.8 - 1.0 l/min (100 ml), 1.5 - 2.0 l/min (300 ml)
  • Min. dispense: 0.05 ml (100 ml), 0.10 ml (300 ml)
  • Nozzle diameter: 2/4/6 mm
  • Stainless steel ball valve
  • Seals material: Teflon / Viton extreme / Viton
  • ZeroPurge™
  • Copied calibration - no recalibration required

Nozzles

  • Air tight - integrated nozzle closures
  • Nozzle cleaning system: brush monitor

Can table

  • Electric Lift
  • Dimensions: 44 x 31 cm
  • Loading height: 39 cm (Low model) / 55 cm (High model)
  • Max. can height: 42 cm (Low model) / 46 cm (High model)
  • Optical can sensor

Dimension & weight

  • HWD 151x115x125 cm (low model)
    HWD 171x115x125 cm (high model)
  • Filling height:
    140 cm (Low model)
    112 cm from step (Low model)
    160 cm (High model)
    132 cm from step (High model)
  • Packaging dimension: 192 x 126 x 148 cm
  • Weight - Net/Gross 307 - 357 kg / 360 - 410 kg

Power supply & safety

  • 110V +/- 10%, 50Hz/60Hz
    230V +/- 10%, 50Hz/60Hz
  • CE certified

Options

  • Electric punch 46 mm, heating set, rollerbed on can table, large can table plate, different colours (RAL).
