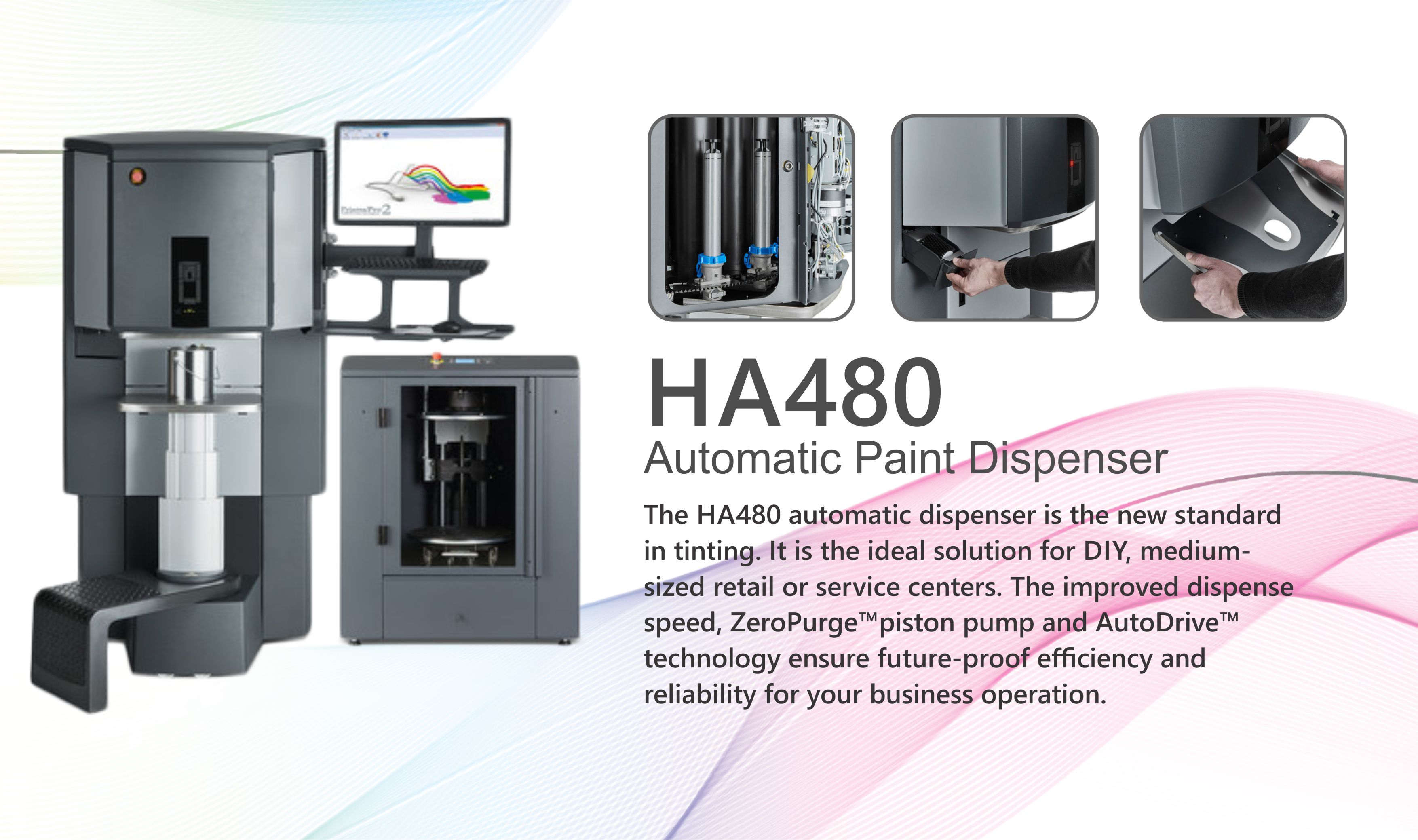

HA480

The HA480 automatic dispenser is the new standard in tinting. It is the ideal solution for DIY, medium-sized retail or service centers. The improved dispense speed, ZeroPurge™piston pump and AutoDrive™ technology ensure future-proof efficiency and reliability for your business operation.

 Specifications:

  • 16-32 POM/SST canisters in 2/3/6/10 l size
  • ZeroPurge piston pump technology
  • Universal, solvent and water based colorants
  • Pump size: 100 ml
  • Flow rate 0.8 - 1.0 l/min
  • 0,05 ml smallest dispense
  • Electric can table
  • Electric punch (optional)
  • Heating set (optional)
  • Low/high model
  • HWD 151x88x96 cm (low model)
  • HWD 171x88x96 cm (high model)

Optimize your operation with the ZeroPurge piston pump. This pump eliminates the manual purging process and autonomously flushes the dispense channels at night, leaving no room for idle colorant anywhere in the system.

Zero colorant waste, minimal maintenance, and a dispenser that's always ready.

General

  • Automatic sequential
  • Solvent based, water based, universal

Canisters

  • Up to 16 - 32 canisters
  • Material: polymeric/stainless steel (optional)
  • Sizes: 2/3/6/10 l

Pump

  • Harbil® ZeroPurge™ Piston pump
  • Pump size: 100 ml
  • Flow rate: 0.8 - 1.0 l/min
  • Min. dispense: 0.05 ml
  • Nozzle diameter: 2/4/6 mm
  • Stainless steel ball valve
  • Seals material: Teflon / Viton extreme / Viton
  • ZeroPurge™
  • Copied calibration - no recalibration required

Nozzles

  • Air tight - integrated nozzle closures
  • Cleaning system: automatic brush & internal flush

Can table

  • Electric Lift
  • Dimensions: 44 x 31 cm
  • Loading height: 39 cm (low model) / 55 cm (high model)
  • Max. can height: 42 cm (low model) / 46 cm (high model)
  • Optical can sensor

Dimension & weight

  • HWD 151 x 88 x 96 cm (Low model)
    HWD 171 x 88 x 96 cm (High model)
  • Filling height:
    140 cm (Low model)
    112 cm from step (Low model)
    160 cm (High model)
    132 cm from step (High model)
  • Packaging dimensions: 193 x 98 x 117 cm
  • Weight - Net/Gross 193-265 / 224-296 kg

Power supply & safety

  • 110V +/- 10%, 50Hz/60Hz
    230V +/- 10%, 50Hz/60Hz
  • CE certified

Options

  • Electric punch 46 mm, heating set, rollerbed on can table, large can table plate, different colours (RAL).
