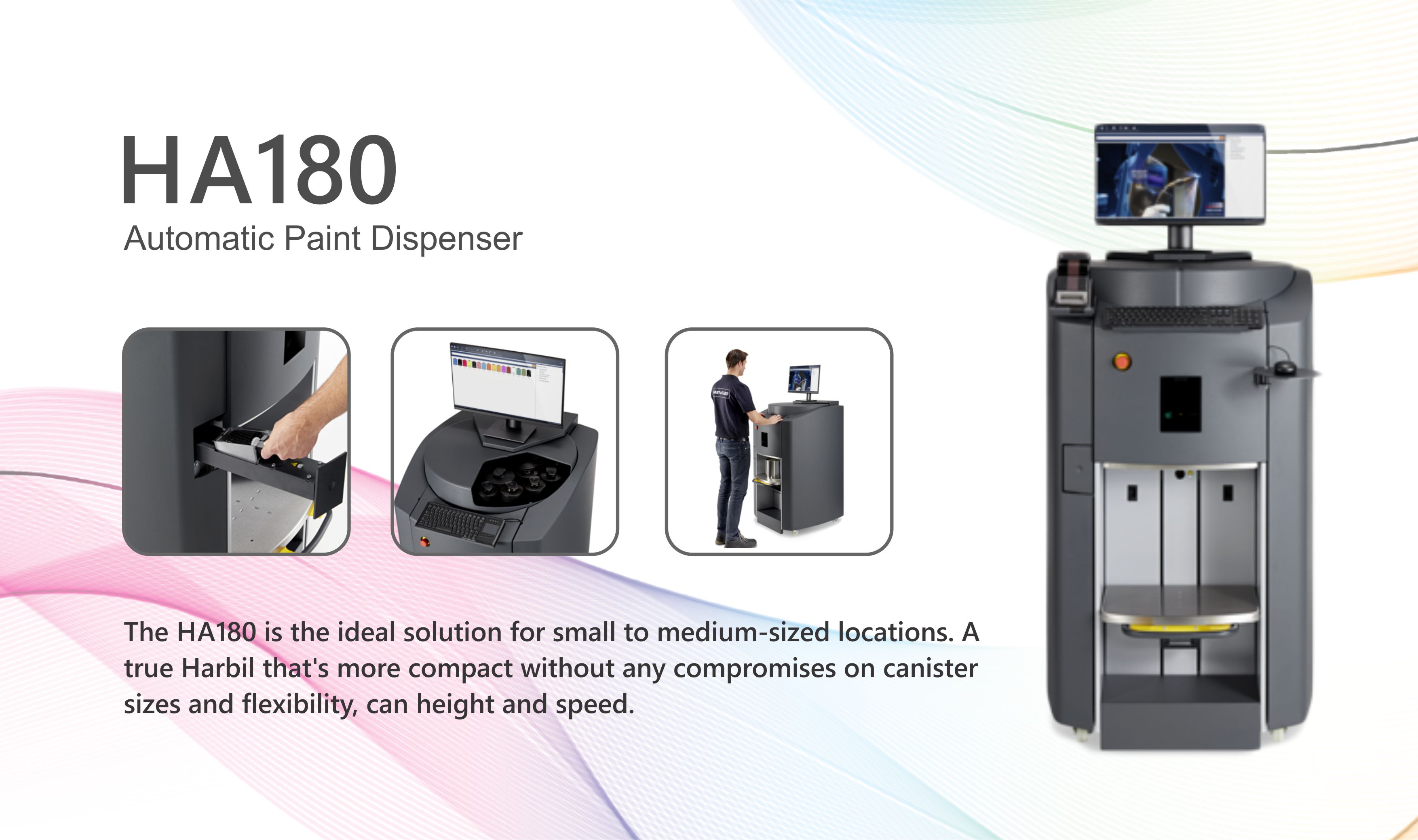

HA180

The HA180 is the ideal solution for small to medium-sized locations. A true Harbil that's more compact without any compromises on canister sizes and flexibility, can height and speed. The ZeroPurge™ piston pump and AutoDrive ™ ensure future proof efficiency and reliability for your business operation.

Specifications

  • Sequential dispensing
  • Up to 24 canisters (POM) in 2.3/4.6 l
  • ZeroPurge Piston pump technology
  • Universal, solvent and water based colorants
  • Pump size: 40 ml
  • Flow rate: 0.4 - 0.5 l/min
  • Smallest dispense: 0.05 ml
  • Operator display
  • Manual can table (Electric optional)
  • Electric punch (optional)
  • Heating set (optional)
  • HWD 140x81x100 cm















We all know those colorants that give trouble over time when they are inside a canister for too long. Looking for ways to have less drying and a better homogenization?

General

  • Automatic sequential
  • Solvent based, water based, universal

Canisters

  • Up to 24 canisters
  • Material: Polymeric (POM)
  • Sizes: 2.3/4.6 L

Pump

  • Harbil® ZeroPurge™ Piston pump
  • Size: 40 ml
  • Flow rate: 0.4 - 0.5 l/min
  • Min. Dispense: 0.05 ml
  • Nozzle diameter: 2/4/6 mm
  • Stainless steel ball valve
  • Seals material: Teflon / Viton extreme / Viton
  • Zero Purge
  • Copied calibration - no recalibration required

Nozzles

  • Air tight - integrated nozzle closures
  • Cleaning system: automatic brush & internal flush

Can table

  • Manual lift
  • Dimensions: 44 x 31 cm
  • Loading height: 36 cm
  • Max. can height: 46 cm
  • Optical can sensor

Dimension & weight

  • HWD 140 x 81 x 100 cm
  • Filling height: 132 cm
  • Packaging dimensions: 193 x 117x 98 cm

Power supply & safety

  • 110V +/- 10%, 50Hz/60Hz
    230V +/- 10%, 50Hz/60Hz
  • CE certified

Options

  • Electric punch 46 mm, heating set, large can table plate, different colours (RAL).
